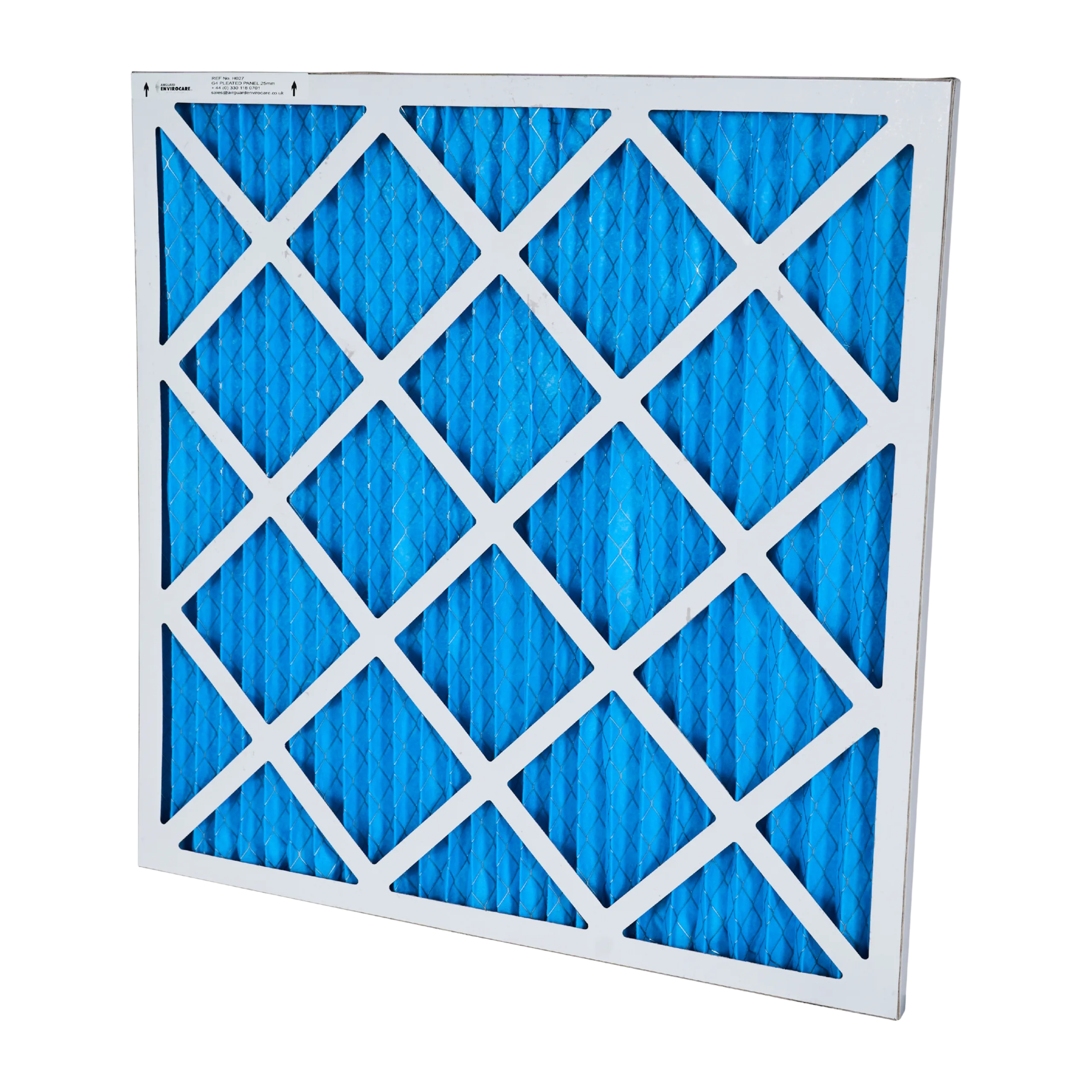

Product Overview
The Airguard standard range of panel filters are fully tested and compliant with ISO 16890. The pleated panel filters provide high dust holding capacity and longer service life.
CONSTRUCTIONS:
Manufactured from a fully synthetic polyester material, laminated to a wire support grid and enclosed in a rigid waxed board outer frame to offer maximum strength and support.
It offers a consistent performance as a pre-filter and provides a medium level of filtration efficiency in air conditioning systems for a wide range of applications.
Technical Specifications
- Wide range of standard sizes off the shelf
- Non-standard sizes available and made to order
- Waxed Card Frame as standard
- Beverage Board Frame available upon request
- Metal frames available
- Standard Pleated Panels available
- Self-supporting pleated Panels available
Size Table 25 mm Nominal (22 mm Actual):
| Nominal Size (mm) | Actual Size (mm) | Rated Capacity (m³/hr) | Initial Resistance (Pa) | Final Resistance (Pa) |
|---|---|---|---|---|
| 500 x 400 | 495 x 395 | 1400 | 65 | 250 |
| 500 x 500 | 495 x 495 | 1780 | 65 | 250 |
| 600 x 300 | 595 x 287 | 1230 | 65 | 250 |
| 500 x 500 | 595 x 495 | 2130 | 65 | 250 |
| 600 x 600 | 595 x 595 | 2560 | 65 | 250 |
| 530 x 400 | 520 x 395 | 1760 | 65 | 250 |
| 635 x 500 | 620 x 495 | 2200 | 65 | 250 |
Size Table 50 mm Nominal (47 mm Actual):
| Nominal Size (mm) | Actual Size (mm) | Rated Capacity (m³/hr) | Initial Resistance (Pa) | Final Resistance (Pa) |
|---|---|---|---|---|
| 300 x 300 | 287 x 287 | 790 | 70 | 250 |
| 380 x 380 | 375 x 375 | 1300 | 70 | 250 |
| 450 x 450 | 445 x 445 | 1895 | 70 | 250 |
| 500 x 380 | 495 x 369 | 1750 | 70 | 250 |
| 500 x 400 | 495 x 395 | 1870 | 70 | 250 |
| 500 x 500 | 495 x 495 | 2360 | 70 | 250 |
| 600 x 300 | 595 x 287 | 1700 | 70 | 250 |
| 600 x 400 | 595 x 395 | 2250 | 70 | 250 |
| 600 x 450 | 595 x 445 | 2540 | 70 | 250 |
| 500 x 500 | 595 x 495 | 2830 | 70 | 250 |
| 600 x 600 | 595 x 595 | 3400 | 70 | 250 |
| 635 x 400 | 620 x 395 | 2350 | 70 | 250 |
| 535 x 500 | 520 x 495 | 2950 | 70 | 250 |
Size Table 100 mm Nominal (96 mm Actual):
| Nominal Size (mm) | Actual Size (mm) | Rated Capacity (m³/hr) | Initial Resistance (Pa) | Final Resistance (Pa) |
|---|---|---|---|---|
| 450 x 450 | 445 x 445 | 2380 | 80 | 250 |
| 500 x 400 | 495 x 395 | 2380 | 80 | 250 |
| 500 x 500 | 495 x 495 | 2950 | 80 | 250 |
| 600 x 300 | 596 x 287 | 2125 | 80 | 250 |
| 500 x 500 | 495 x 495 | 3540 | 80 | 250 |
| 600 x 600 | 595 x 595 | 4250 | 80 | 250 |
| 535 x 400 | 520 x 395 | 2940 | 80 | 250 |
| 635 x 500 | 620 x 495 | 3700 | 80 | 250 |
Typical Applications
Airguard Envirocare’s G4 Panel Filters are used in the following applications:
- Office Books
- Hotels
- Hospital
- Leisure Industry
- Retail Stores
- Food Industry
- Paint Shops
- Factories
This filter family is commonly used across the following industry sectors:
