HVX – AG

The Airguard HVX-AG was initially designed for gas-turbine air-intake systems. HVX-AG provides an exceptional level of protection for turbines located in offshore and coastal environments. The filter is optimised to operate at high velocities in wet or dry conditions.

CONSTRUCTION:

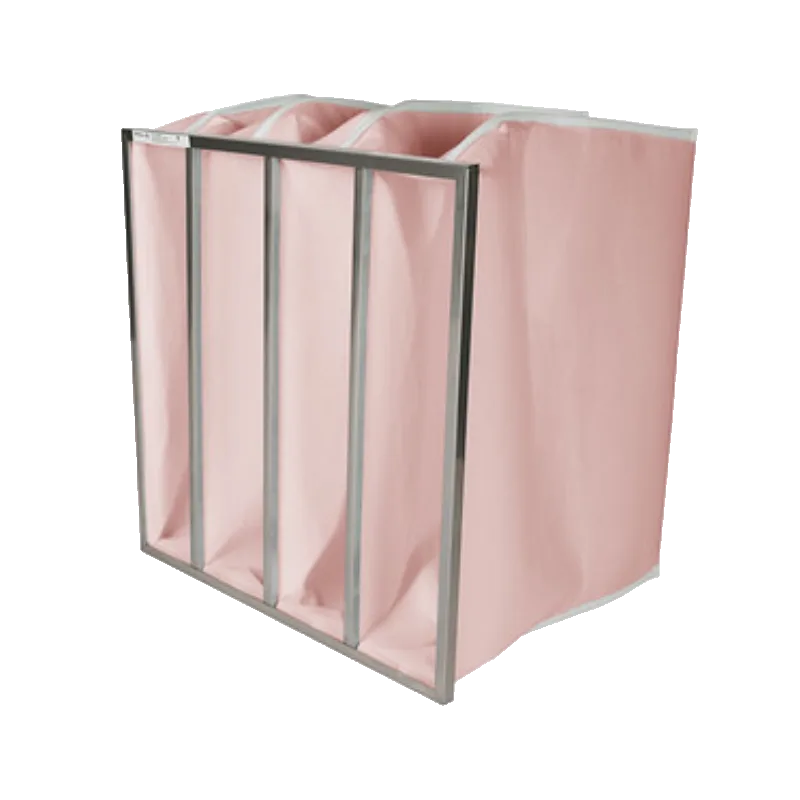

The four filter pockets have a two-stage construction. The first stage is a high-loft nonwoven filter mat, which provides a high dust-loading capacity. The second stage is 100% polypropylene lofted media, which is ultrasonically welded into a polypropylene carrier on the downstream side to offer a high-efficiency filter. This two-stage construction results in lower initial air resistance and higher dust holding capacity.

• 100% Silicone Free Synthetic Media
• Non-Shedding Bonded Polyester
• UL Class 1 and Self-Extinguishing, According to DIN 53438 – F1
• Dust Holding Capacity for 1m/s 650 GMS
• 95% Efficient up to 4 Micron
• Stainless Steel Frame Available 22mm
• Standard and Non-Standard Sizes Available
• Adjoining Clips Fitted if Required
• Factory Fitted Seals Available

• Gas Turbine Ventilation System
• Industrial Applications
• Platform HVAC Filtration
• Marine Propulsion

OTHER MANUFACTURERS EQUIVALENTS

The HVX-AG is suitable for Altair System2, Altair Neptune & Altair Vega.

Parker Hannifin / Altair Part No’s: HVX/001060F, HVX/000101F, HVX/000038F, HVX/002977F
