Product Overview

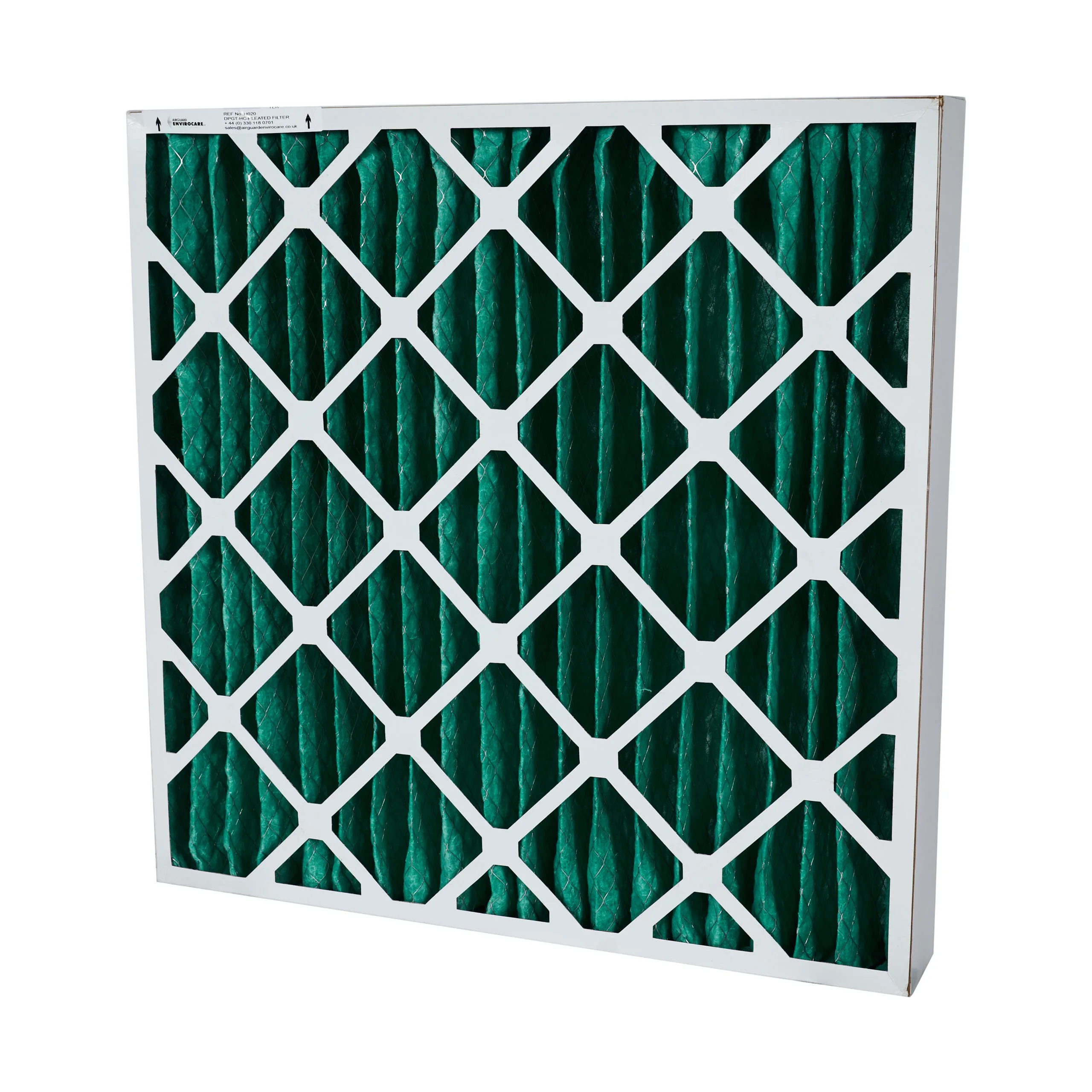

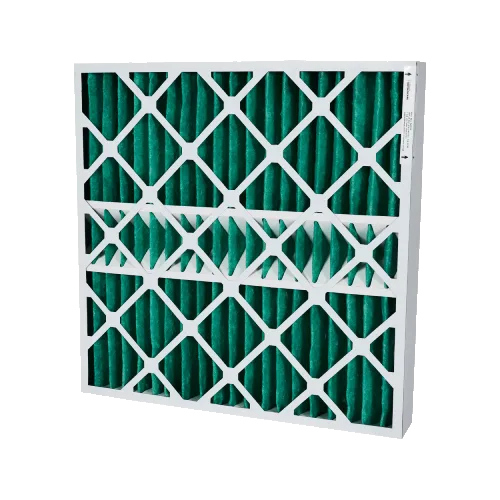

Rated according to EN779 standards, the Airguard Envirocare G4 pre-filter panel is constructed entirely from synthetic pleated media.
Its pleated design provides an extended surface area, resulting in lower pressure drop and a significantly longer service life compared to conventional non-pleated panel filters.
Technical Specifications
- 100% Synthetic Media
- Merv 8 Ashrae -Efficiency 30-35%
- G4 (EN779)
- Final Resistance: 1.0” W.G.
- Rated Velocity: 625 FPM
- Class 2 Filter Per U.L. Standard 900
- 3400 m3/hour, 2000 CFM
- Operating Temperature: -40 to 70°C OR -40 to 158°F
Size Table DPGT 2-inch Filters:
| Model Number | Normal Size (Inches) W x H x D | Actual Size (Inches) W x H x D | Rated Air Flow (CFM) | Initial Resistance (IN W.G.) | Media Area (Sq Ft) |
|---|---|---|---|---|---|
| DPGT-STD2-220 | 12 x 20 x 2 | 11-3/4 x 19-3/4 x 1-3/4 | 1040 | 40 | 7.3 |
| DPGT-STD2-210 | 12 x 24 x 2 | 11-3/8 x 23-3/8 x 1-3/4 | 1250 | 40 | 8.6 |
| DPGT-STD2-239 | 14 x 20 x 2 | 13-3/4 x 19-3/4 x 1-3/4 | 1215 | 40 | 8.8 |
| DPGT-STD2-241 | 14 x 25 x 2 | 13-3/4 x 24-3/4 x 1-3/4 | 1520 | 40 | 11.0 |
| DPGT-STD2-245 | 15 x 20 x 2 | 14-3/4 x 19-3/4 x 1-3/4 | 1300 | 40 | 9.3 |
| DPGT-STD2-201 | 16 x 20 x 2 | 15-1/2 x 19-1/2 x 1-3/4 | 1400 | 40 | 9.9 |
| DPGT-STD2-202 | 16 x 25 x 2 | 15-1/2 x 24-1/2 x 1-3/4 | 1740 | 40 | 12.3 |
| DPGT-STD2-280 | 18 x 20 x 2 | 17-3/4 x 19-3/4 x 1-3/4 | 1550 | 40 | 10.9 |
| DPGT-STD2-212 | 18 x 24 x 2 | 17-1/2 x 23-1/2 x 1-3/4 | 1875 | 40 | 13.0 |
| DPGT-STD2-285 | 18 x 25 x 2 | 17-1/2 x 24-1/2 x 1-3/4 | 1950 | 40 | 13.6 |
| DPGT-STD2-203 | 20 x 20 x 2 | 19-1/2 x 19-1/2 x 1-3/4 | 1740 | 40 | 11.9 |
| DPGT-STD2-211 | 20 x 24 x 2 | 19-3/8 x 23-3/8 x 1-3/4 | 2080 | 40 | 14.2 |
| DPGT-STD2-204 | 20 x 25 x 2 | 19-1/2 x 24-1/2 x 1-3/4 | 2170 | 40 | 14.9 |
| DPGT-STD2-205 | 24 x 24 x 2 | 23-3/8 x 23-3/8 x 1-3/4 | 2500 | 40 | 17.6 |
| DPGT-STD2-225 | 25 x 25 x 2 | 24-1/2 x 24-1/2 x 1-3/4 | 2710 | 40 | 19.4 |
Size Table DPGT 4-inch Filters:
| Model Number | Normal Size (Inches) W x H x D | Actual Size (Inches) W x H x D | Rated Air Flow (CFM) | Initial Resistance (IN W.G.) | Media Area (Sq Ft) |
|---|---|---|---|---|---|
| DPGT-STD4-410 | 12 x 24 x 4 | 11-3/8 x 23-3/8 x 3-3/4 | 1040 | 26 | 12.4 |
| DPGT-STD4-401 | 16 x 20 x 4 | 15-1/2 x 19-1/2 x 3-3/4 | 1400 | 26 | 14.6 |
| DPGT-STD4-402 | 16 x 25 x 4 | 15-1/2 x 24-1/2 x 3-3/4 | 1740 | 26 | 18.3 |
| DPGT-STD4-412 | 18 x 24 x 4 | 17-1/2 x 23-1/2 x 3-3/4 | 1875 | 26 | 19.9 |
| DPGT-STD4-403 | 20 x 20 x 4 | 19-1/2 x 19-1/2 x 3-3/4 | 1740 | 26 | 18.8 |
| DPGT-STD4-411 | 20 x 24 x 4 | 19-3/8 x 23-3/8 x 3-3/4 | 2080 | 26 | 22.4 |
| DPGT-STD4-404 | 20 x 25 x 4 | 19-1/2 x 24-1/2 x 3-3/4 | 2170 | 26 | 23.5 |
| DPGT-STD4-405 | 24 x 24 x 4 | 23-3/8 x 23-3/8 x 3-3/4 | 2500 | 26 | 26.1 |
Typical Applications
- Gas Turbine Ventilation System
- Diesel or Gas Engine Air Intake
- Platform HVAC
- Offshore Wind Turbine Ventilation
OTHER MANUFACTURER EQUIVALENTS:
DPGT-405G, LM6000 PN: 0423495, HBD/000619F, HBD/006204F, HBD/006503F, GE PN: 207D1202P0001
